SHCY029-12-2000
- Brand£ºThe power adapter
- Product Description£º24W SHCY029 series of adapters£¬The IC scheme.1.Strong anti-interference ability, high reliability 2.Small ripple, level five 3.Wide input voltage£¨90-264V£© 4.short circuit/Overload/Over voltage/Over temptyerture pretection. 5.100% aging and test 6.DOE:VIAromatherapy machine ,LED adapter,
Introduction:
24W wall-mounted type AC/DC adapter, white or black shell, with TUV, GS, CE, UL, CB, SAA, FCC approvals, universal input
Quality standard: ISO 9001:2008
Approvals: UL/cUL/CE/FCC/PSE
2-year warranty
Features:
Universal AC input/full range
Input condition: 100-240V AC, 50/60Hz
Input rated voltage: 100-240V AC
Input voltage range: 90-264V AC
Input rated frequency: 50/60Hz
Input frequency range: 47-63Hz
Input current (maximum): 0.35A/110V AC 0.2A/230V AC
Ripple and noise: 100mVp-p maximum
Setup, rise time: 30ms/230V AC 15ms/110V AC
Hold up time: 50ms/230V AC 15ms/110V AC at full load
Fully enclosed plastic case
Plugs: US/European/American three plug/British
No load power consumption <0.1W
DOE:VI
MEPS compliant
2 years warranty
Reliability: fault-free time: 50,000 hours, -25-degree Celsius (according to the mil-HD-217 standard)
Protections: short circuit/overload/overload/over voltage/over temperature
Primary competitive advantages:
Brand-name parts
Country of origin
High efficiency and low operation temperature
AC input power suitable for the world
Protections: short circuit/overload/over voltage/over temperature
100% full-load burning test
Installed with EMI filter, minimum wave
The size picture:

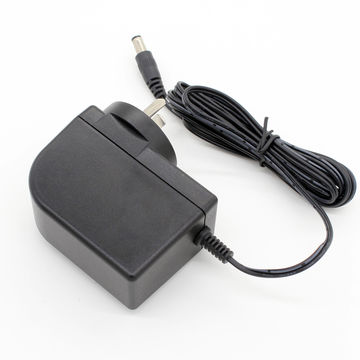

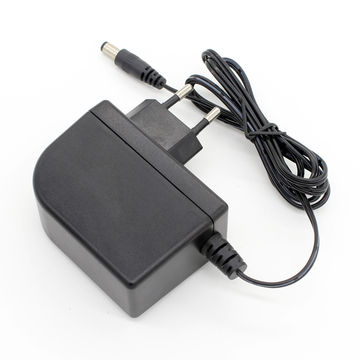

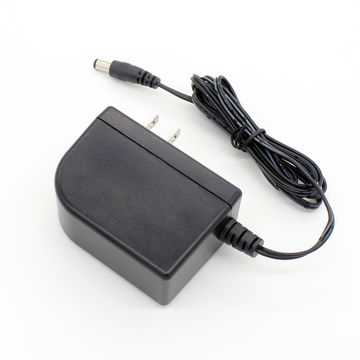

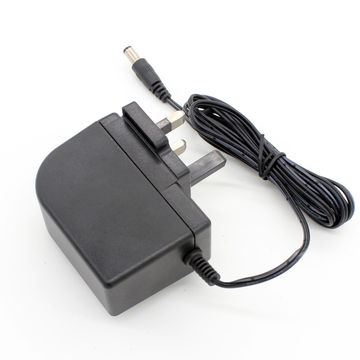

The more products picture£º
