SHCY001

Introduction:

• 15W SERICES wall-mounted type AC/DC adapter, white or black shell, with TUV, GS, CE, UL, CB, SAA, FCC approvals, universal input
• Quality standard: ISO 9001:2008
• Approvals: CE
• 2-year warranty
• Features:
  • Universal AC input/full range
  • Input condition: 100-240V AC, 50/60Hz
  • Input rated voltage: 100-240V AC
  • Input voltage range: 90-264V AC
  • Input rated frequency: 50/60Hz
  • Input frequency range: 47-63Hz
  • Input current (maximum): 0.35A/110V AC 0.2A/230V AC
  • Output voltage and current: 0~36W
  • Ripple and noise: 100mVp-p maximum
  • Setup, rise time: 30ms/230V AC 15ms/110V AC
  • Hold up time: 50ms/230V AC 15ms/110V AC at full load
  • Fully enclosed plastic case
  • Plugs: US/European/American three plug/British
  • No load power consumption <0.3W
  • ErP step 2 compliant (level V)
  • MEPS compliant
  • 2 years warranty
• Reliability: fault-free time: 50,000 hours, -25-degree Celsius (according to the mil-HD-217 standard)
• Protections: short circuit/overload/overload/over voltage/over temperature
• Primary competitive advantages:
• Brand-name parts
• Country of origin
• High efficiency and low operation temperature
• AC input power suitable for the world
• Protections: short circuit/overload/over voltage/over temperature
• 100% full-load burning test
• Installed with EMI filter, minimum wave
• Approvals: UL/cUL/CE/FCC/PSE/GS/TUV/CB
• Ripple and noise: <100mv at full road
• conversion efficiency: >85%
• No load power consumption: <0.3W
• Fully enclosed plastic case
• 2-year warranty
•

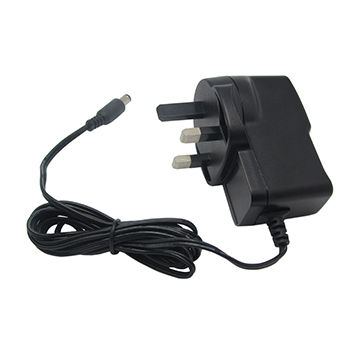

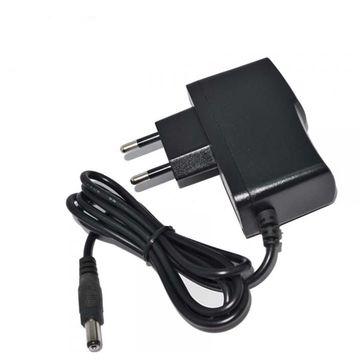

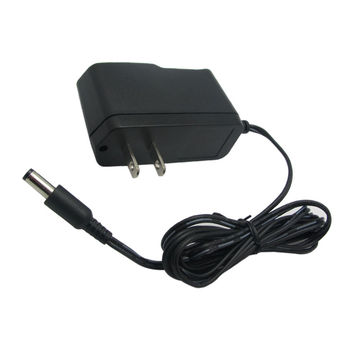

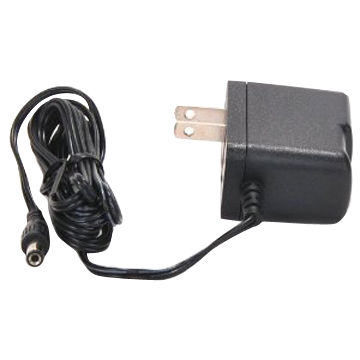

The more pictures of products
