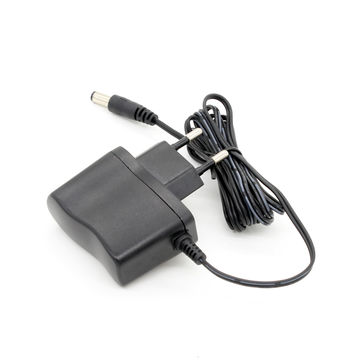

SHCY101
- Brand£ºThe power adapter
- Product Description£ºUL CE PSE certificate16W SHCY101 series of adapters£¬The IC scheme.1.Strong anti-interference ability, high reliability 2.Small ripple, 3.Wide input voltage£¨90-264V£© 4.short circuit/Overload/Over voltage/Over temptyerture pretection. 5.100% aging and test 6.DOE:VI,Aroma machine adapte.The common specification:5V1A 5V1.2A 6V1A 12V0.5A
Introduction:
¡ñ16W wall-mounted type AC/DC adapter, switching power supply,white or black shell, with TUV, GS, CE, UL, CB, SAA, FCC approvals, universal input,Suitable for Mobile phones, tablet computers, network set-top boxes, routers, cats, switches, digital photo frame, smart wearable devices, notebook computers, desktop computers.
¡ñQuality standard: ISO 9001:2008
¡ñApprovals: UL/cUL/CE/FCC/PSE/GS/TUV/CB
¡ñ2-year warranty
¡ñVI efficiency(DOE)
¡ñEfficiency>77.73%
¡ñNo load power consumption<0.1W
¡ñFeatures:
- Universal AC input/full range
- Input condition: 100-240V AC, 50/60Hz
- Input rated voltage: 100-240V AC
- Input voltage range: 90-264V AC
- Input rated frequency: 50/60Hz
- Input frequency range: 47-63Hz
- Input current (maximum): 0.35A/110V AC 0.2A/230V AC
- Output voltage and current: 24V and 0.65A
- Ripple and noise: 100mVp-p maximum
- Setup, rise time: 30ms/230V AC 15ms/110V AC
- Hold up time: 50ms/230V AC 15ms/110V AC at full load
- Fully enclosed plastic case
- Plugs: US/UK/EU/UK/AU/JA/KO/CH
- DOE:VI
- Class II
- MEPS compliant
¡ñ2 years warranty
¡ñReliability: fault-free time: 50,000 hours, -25-degree Celsius (according to the mil-HD-217 standard)
¡ñProtections: short circuit/overload/overload/over voltage/over temperature
¡ñPrimary competitive advantages:
- Brand-name parts
- Country of origin
- High efficiency and low operation temperature
- AC input power suitable for the world
- Protections: short circuit/overload/over voltage/over temperature
- 100% full-load burning test
- Installed with EMI filter, minimum wave
- Approvals: UL/cUL/CE/FCC/PSE/GS/TUV/CB
- Ripple and noise: <100mv at full road
- conversion efficiency: >84.32%
- No load power consumption: <0.1W
- Fully enclosed plastic case
- 2-year warranty
Products size
More products picture
