SHCY-SP2400650

Introduction:

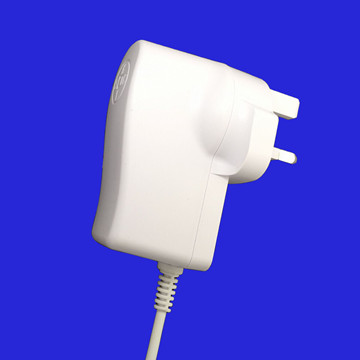

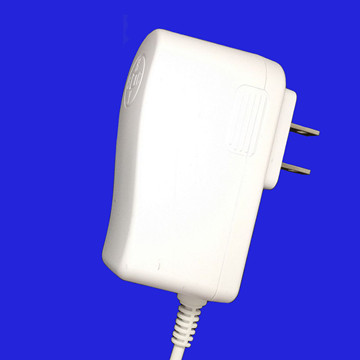

• 16W wall-mounted type AC/DC adapter, switching power supply,white or black shell, with TUV, GS, CE, UL, CB, SAA, FCC approvals, universal input,Suitable for Mobile phones, tablet computers, network set-top boxes, routers, cats, switches, digital photo frame, smart wearable devices, notebook computers, desktop computers.
• Quality standard: ISO 9001:2008
• Approvals: UL/cUL/CE/FCC/PSE/GS/TUV/CB
• 2-year warranty
• VI efficiency(DOE)
• Efficiency>84.32%
•

• Features:
  • Universal AC input/full range
  • Input condition: 100-240V AC, 50/60Hz
  • Input rated voltage: 100-240V AC
  • Input voltage range: 90-264V AC
  • Input rated frequency: 50/60Hz
  • Input frequency range: 47-63Hz
  • Input current (maximum): 0.35A/110V AC 0.2A/230V AC
  • Output voltage and current: 24V and 0.65A
  • Ripple and noise: 100mVp-p maximum
  • Setup, rise time: 30ms/230V AC 15ms/110V AC
  • Hold up time: 50ms/230V AC 15ms/110V AC at full load
  • Fully enclosed plastic case
  • Plugs: US/UK/EU/UK/AU/JA/KO/CH
  • DOE:VI
  • Class II
  • MEPS compliant
  • 2 years warranty
• Reliability: fault-free time: 50,000 hours, -25-degree Celsius (according to the mil-HD-217 standard)
• Protections: short circuit/overload/overload/over voltage/over temperature
• Primary competitive advantages:
• Brand-name parts
• Country of origin
• High efficiency and low operation temperature
• AC input power suitable for the world
• Protections: short circuit/overload/over voltage/over temperature
• 100% full-load burning test
• Installed with EMI filter, minimum wave
• Approvals: UL/cUL/CE/FCC/PSE/GS/TUV/CB
• Ripple and noise: <100mv at full road
• conversion efficiency: >84.32%
• No load power consumption: <0.1W
• Fully enclosed plastic case
• 2-year warranty
• The size picture:
•

• The more products picture
•

•

•

•
•
•
•
